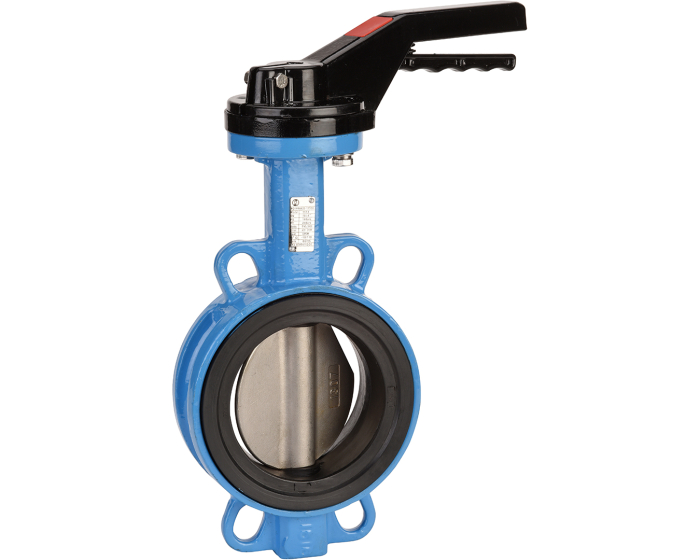

The 1173 wafer valve, EN GJS cast iron body, stainless steel disc, high temperature EPDM seat, PN10/16 flange fitting, Class 150, for cold water, sea water
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | BS 5155 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 250.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | EN 12266-1 Rate A |
| Type of seat | Removable |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 11 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 36.0 |
| Seat | EPDM HT |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F07 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 130 |
| TS min (°C) | -20 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Through shaft | Yes |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 1173040 | S1009211 |
€31.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 1173050 | S1009212 |
€37.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 1173065 | S1009213 |
€45.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 1173080 | S1009214 |
€53.13
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 1173100 | S1009215 |
€76.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 1173125 | S1009216 |
€97.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 1173150 | S1009217 |
€116.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 1173200 | S1009218 |
€202.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 1173250 | S1009219 |
€311.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 1173300 | S1009220 |
€441.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' | 1173350 | S1009221 |
€635.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' | 1173400 | S1009222 |
€1,191.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN450 - 18'' | 1173450 | S1009223 |
€1,480.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN500 - 20'' | 1173500 | S1009224 |
€1,902.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN600 - 24'' | 1173600 | S1009225 |
€3,125.56
(excl. btw)
|
add to cart |
